KNA NG-2 NYLON GUITAR PICKUP (NG2)
Portable bridge-mounted piezo with volume control for nylon-string guitar
Handcrafted high-quality pickups in Europe
100% Organic Tone / True Acoustic Sound / Handcrafted Voice
Natural Sounding Solutions for Acoustic Instruments
1(ONE) YEAR LOCAL WARRANTY / LOCALLY SHIPPED FROM SINGAPORE / SINGAPORE EXCLUSIVE DEALER.
With onboard volume control, NG-2 is a versatile choice for guitarists who need a piezo pickup to transfer the natural sound of their instrument.
Live or in the studio, it's a classical guitar pickup that brings true nylon-string sound and does it without an installation that requires modification.
Installs with no modification

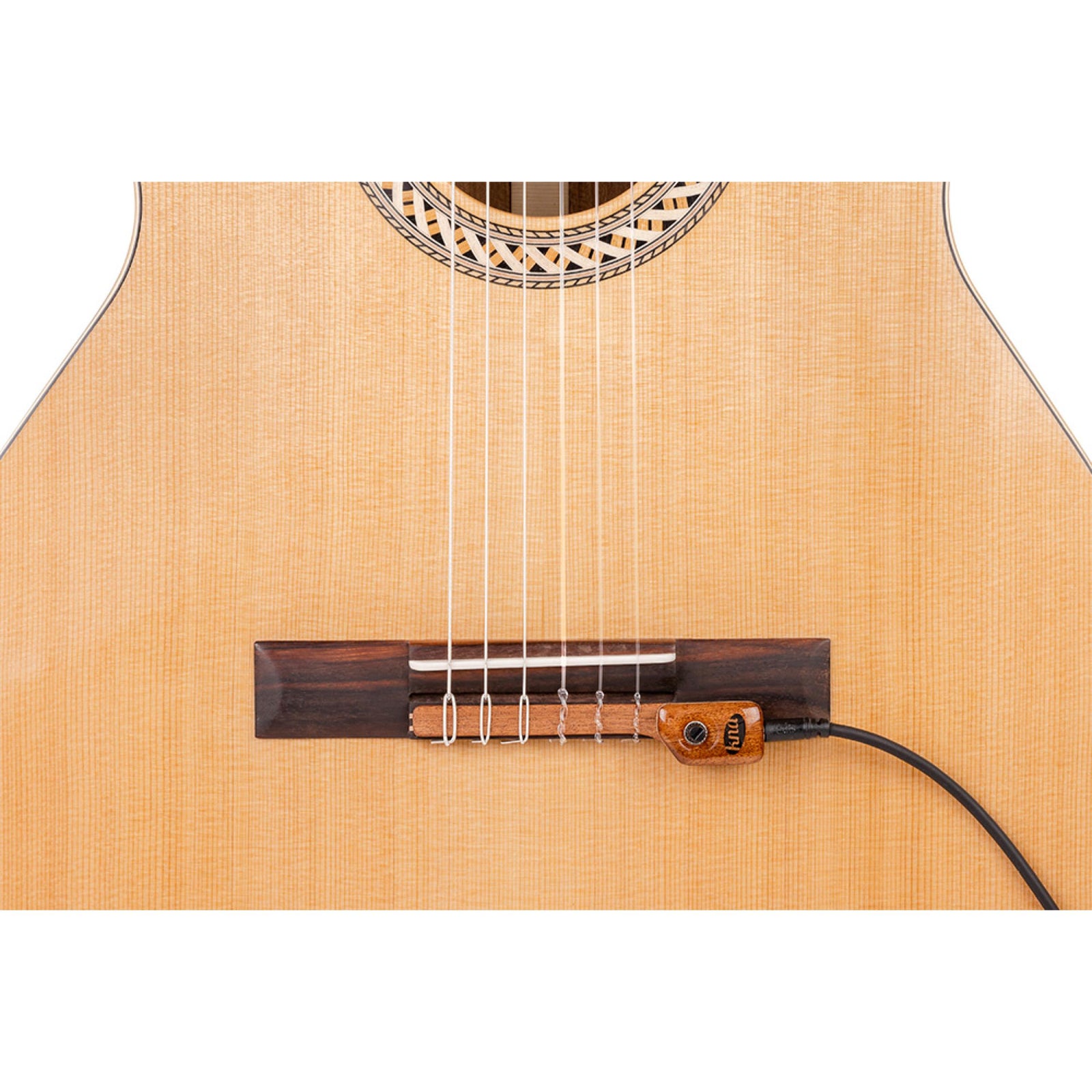

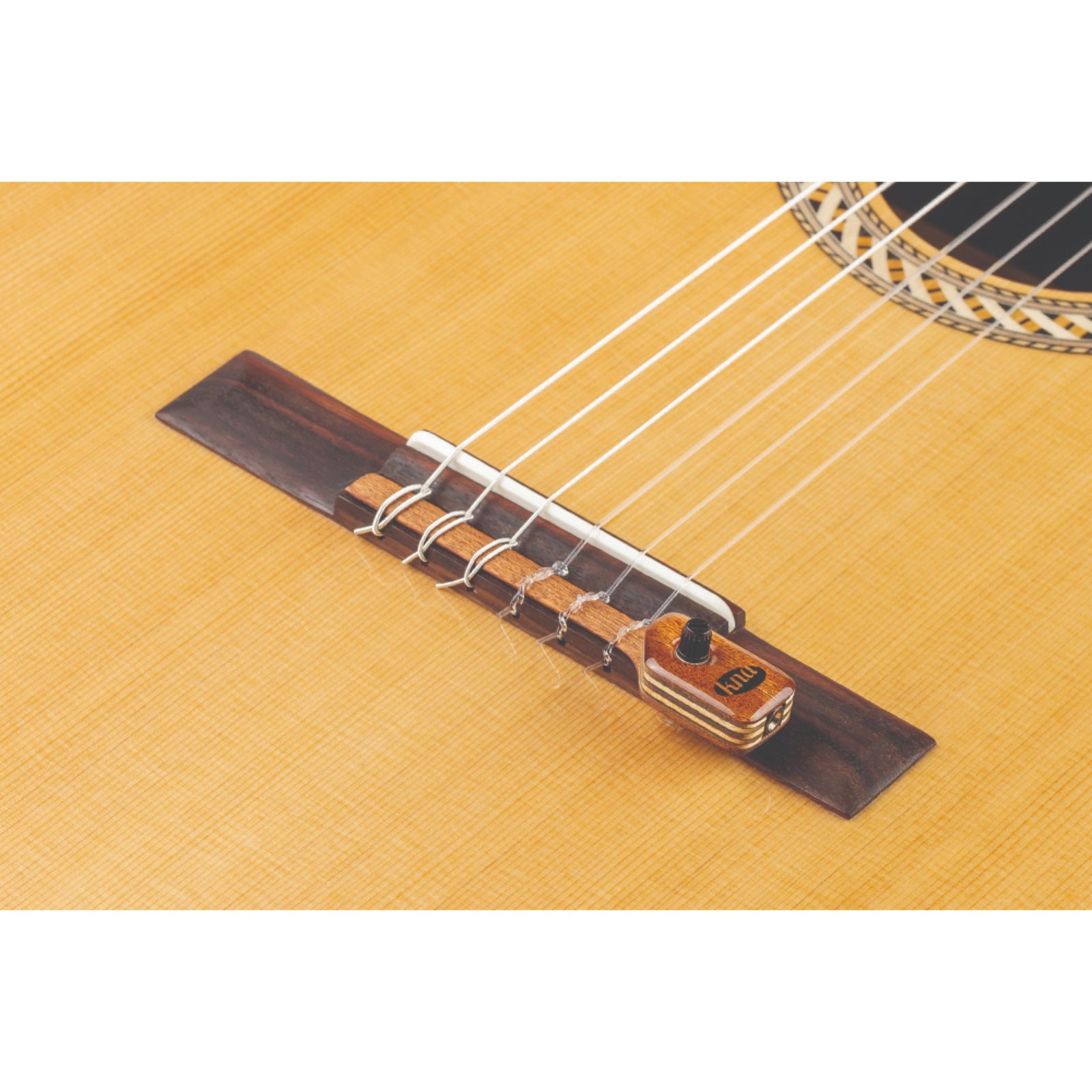

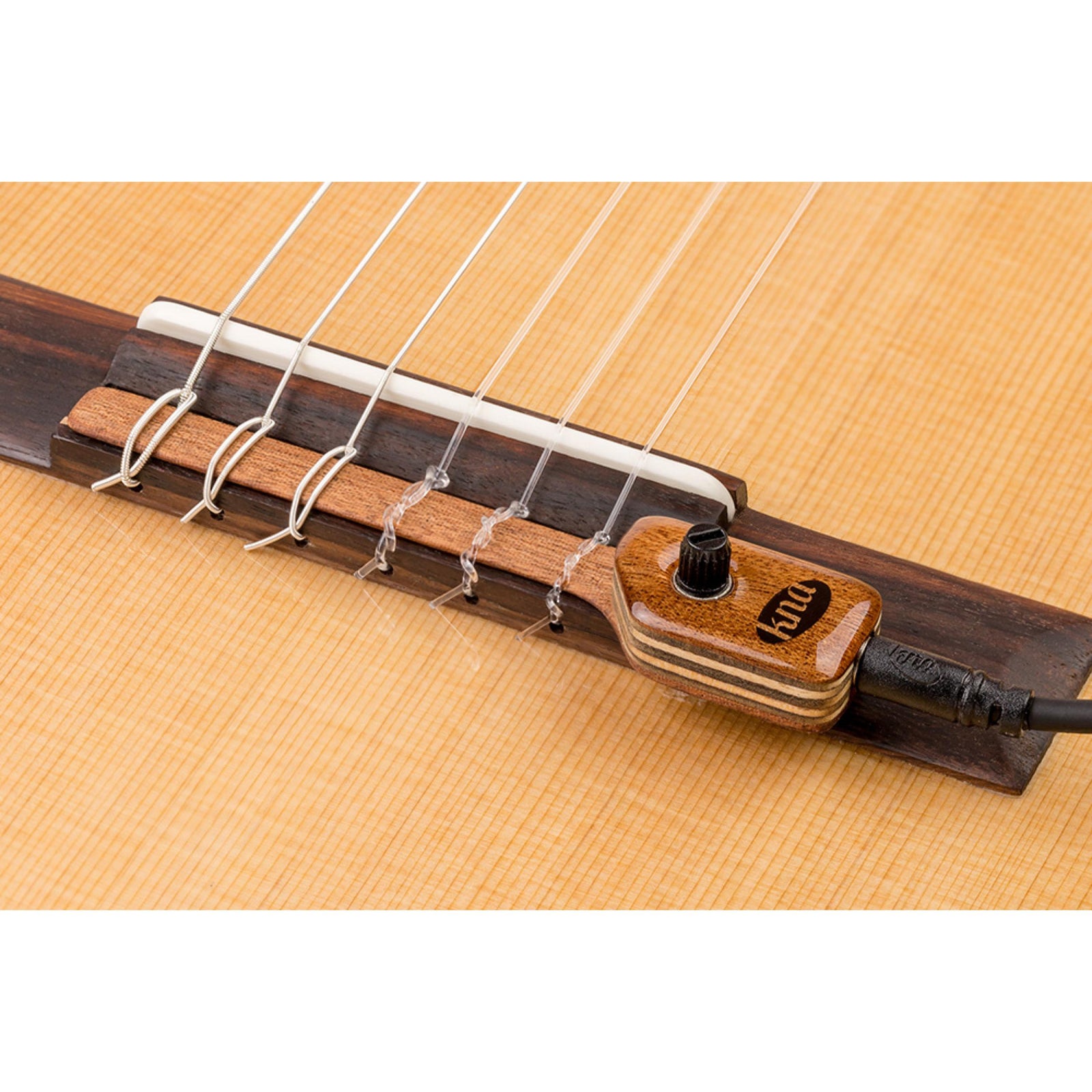

NG-2 installs safely and securely on the classical or flamenco guitar tie block utilizing the tension of the strings.
Onboard volume control
Players can control their output signal while onstage or in the studio, right from the pickup-mounted volume knob.

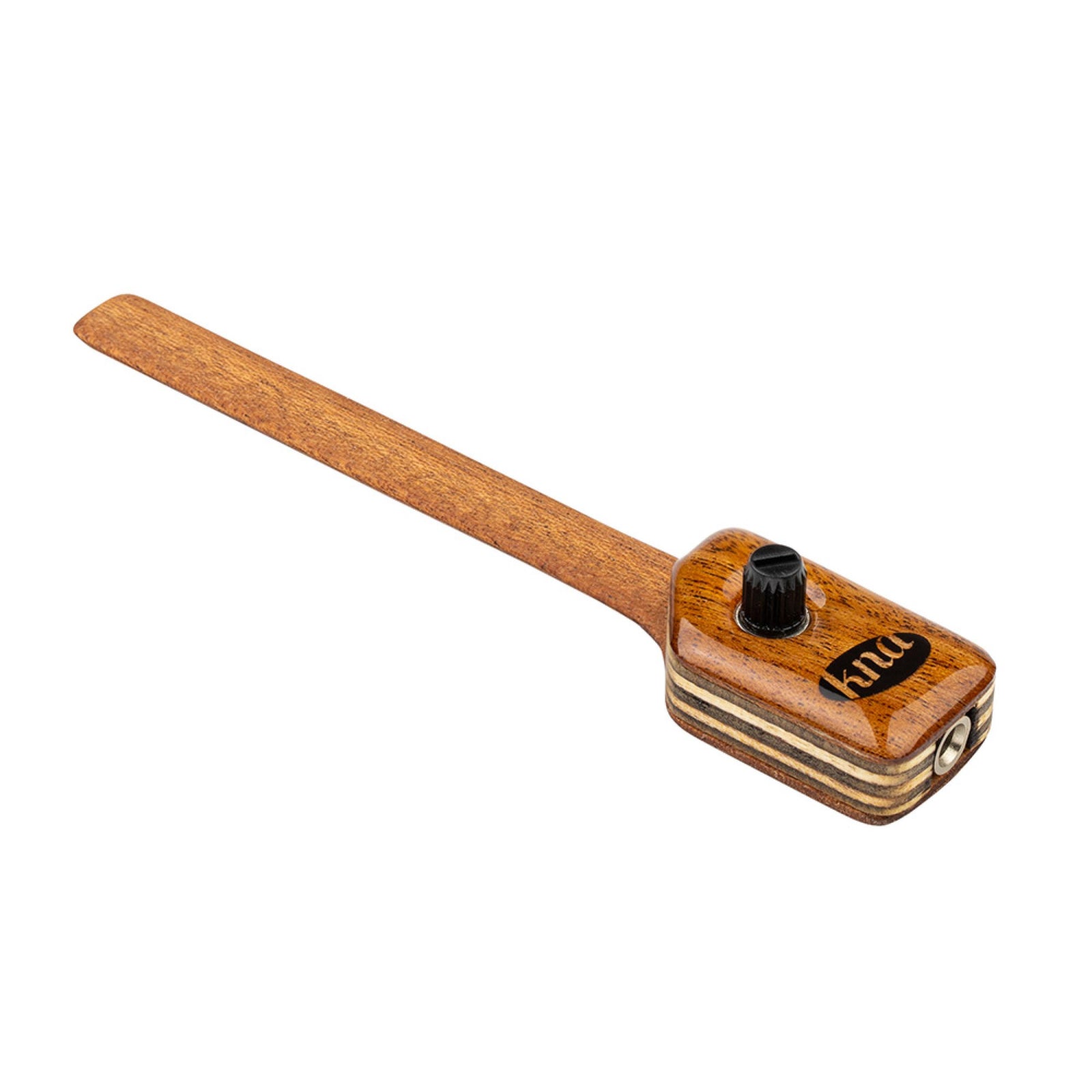

Wood case
The piezo element is encased in elegant and stylish mahogany. The lightweight assembly offers maximum tonal sensitivity.
Natural Sound
NG-2 has a passive design that reproduces the natural sound of the instrument with no need for a battery.

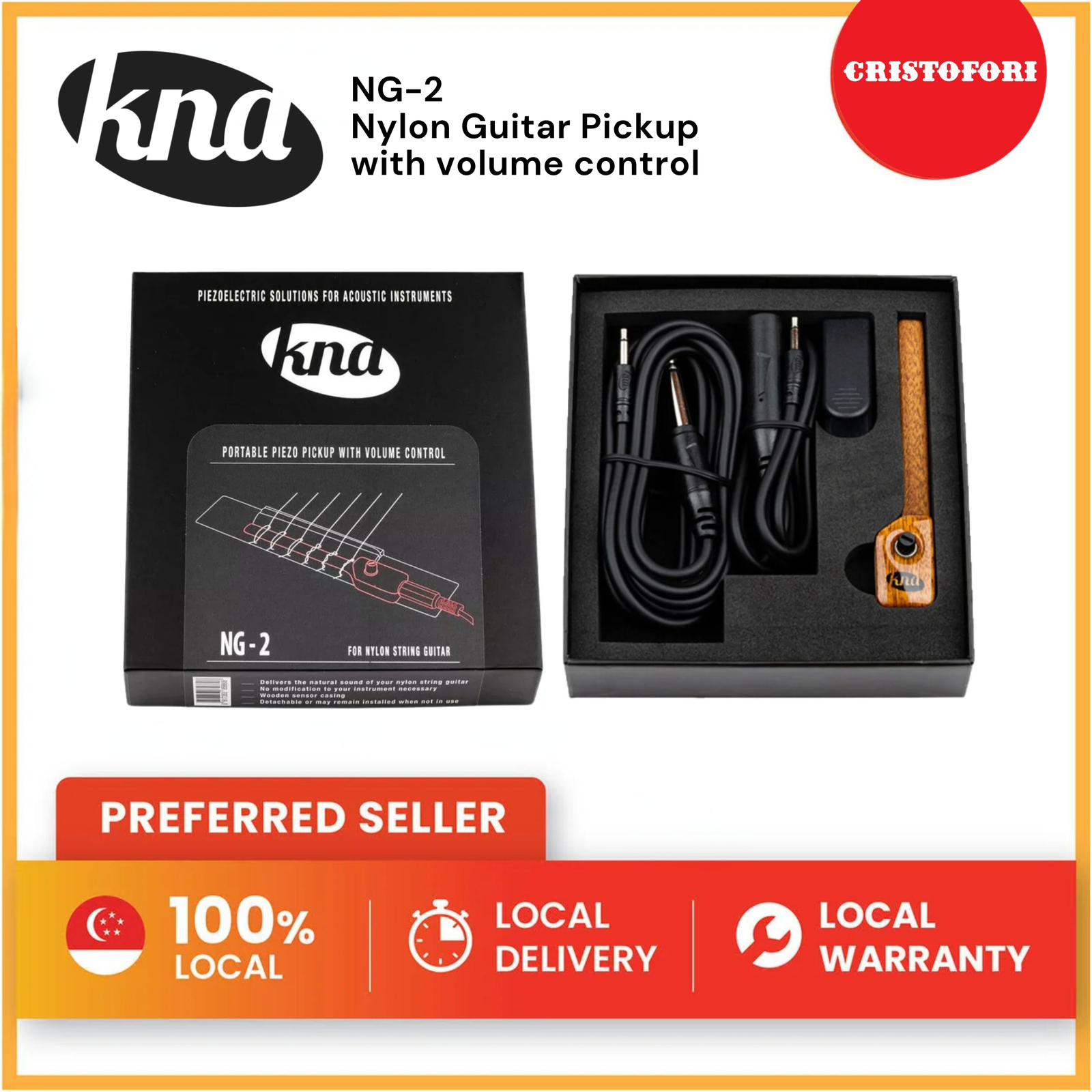

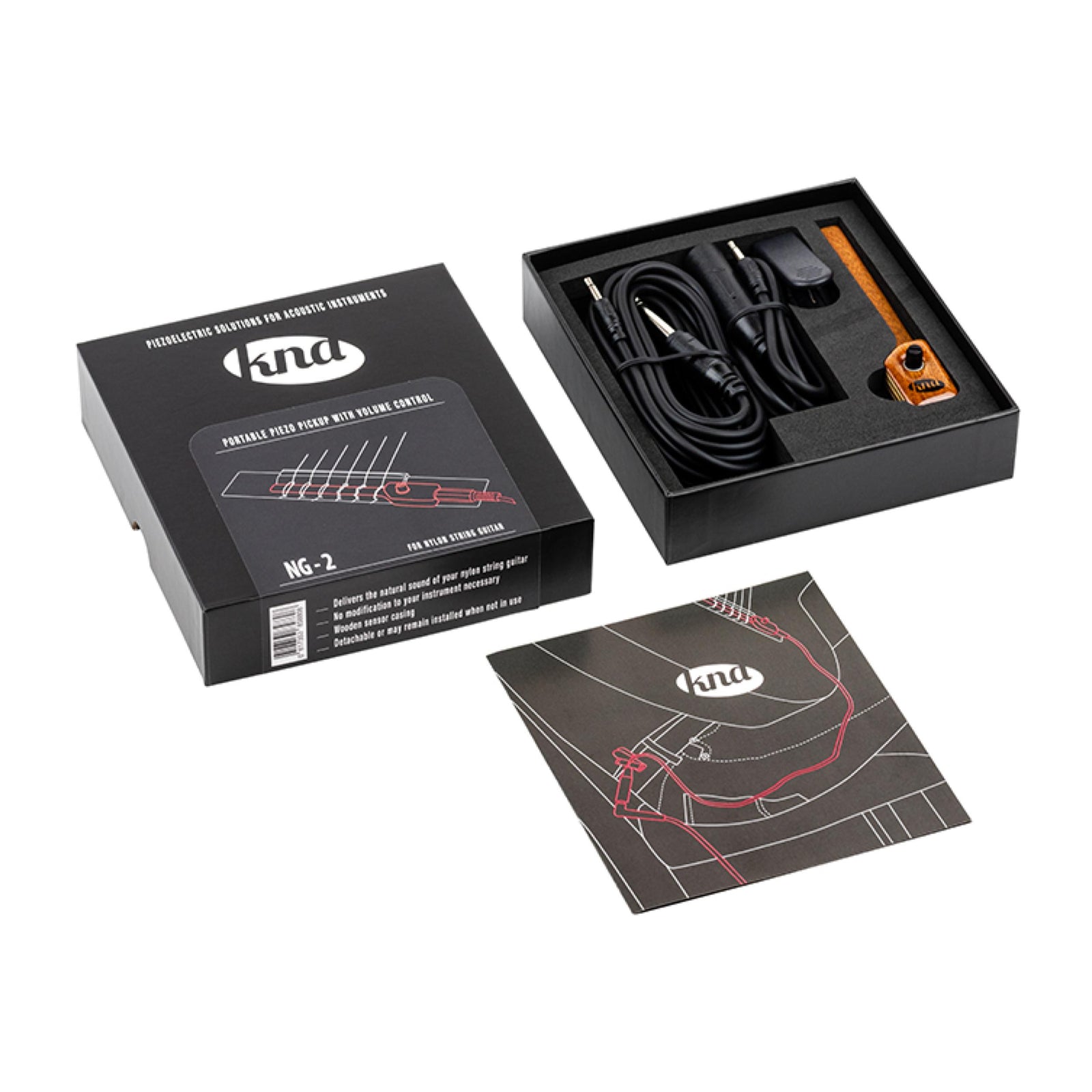

Complete set

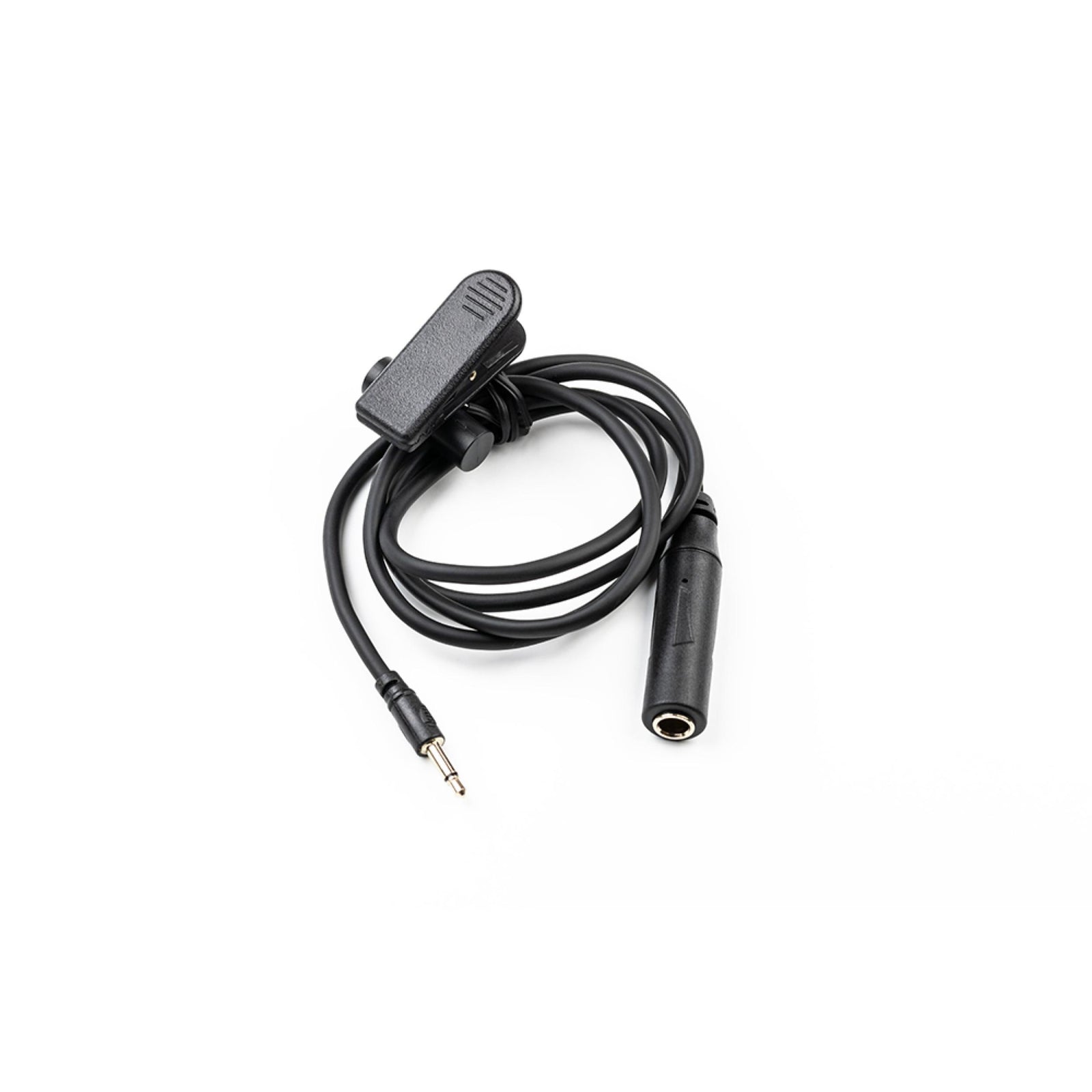

Two cables are included — one 9-ft. 1/8" to 1/4" and one 3-ft. 1/8" to female 1/4" jumper with safety clip to connect with your instrument cable.
Instructions
1️⃣Loosen the strings of the guitar. Make sure there is enough space under the loops so the pickup can slide through without any pressure.
2️⃣Slide the pickup under the string loops. Keep it positioned evenly on the tie bar while tightening the string and retune.
3️⃣Press the top button to open the safety clip. Insert your instrument cable into the opening and release the button.
4️⃣Hold the pickup head securely when attaching and detaching the cable. The clip to a suitable part of your instrument strap, belt or belt loop. The jumper cable and safety clip will protect your pickup from accidental damage caused by the cable pulling on the head of the pickup.
You are ready to enjoy your new pickup!
Video Review
| Specifications |
| Weight |
5g. / 0.176oz |
| Wood |
Mahogany |
| Maximum Impedance |
500 Ω |
| Cables |
| Jumper cable with safety clip |
1meter / 3' |
| Amp cable |
3meter / 9' |
| Measurements |
| Specified part |
Letter |
Size in MM (from*) |
Size in MM (to*) |
Size in INCH (from*) |
Size in INCH (to*) |
| Transducer length |
a |
73,2 |
73,3 |
2,882 |
2,886 |
| Jack housing length |
b |
32,5 |
32,6 |
1,280 |
1,283 |
| Total pickup length |
c |
105,8 |
- |
4,165 |
- |
| Transducer width |
d |
9,3 |
9,4 |
0,366 |
0,370 |
| Active signal transfer area length |
e |
69,1 |
69,2 |
2,720 |
2,724 |
| Transducer thickness |
f |
2,1 |
2,2 |
0,083 |
0,087 |
| Jack housing height without potentiometer |
g |
10,7 |
10,8 |
0,421 |
0,425 |
| Jack housing height with potentiometer |
h |
16,3 |
16,4 |
0,642 |
0,646 |
|
*KNA handmade pickups may vary slightly in size due to the nature of the building |
=======================================================
