KNA SG-2 Steel-string / Acoustic Guitar PICKUP (SG2)
Portable bridge-mounted piezo with volume control for steel-string acoustic guitar
Handcrafted high-quality pickups in Europe
100% Organic Tone / True Acoustic Sound / Handcrafted Voice
Natural Sounding Solutions for Acoustic Instruments
1(ONE) YEAR LOCAL WARRANTY / LOCALLY SHIPPED FROM SINGAPORE / SINGAPORE EXCLUSIVE DEALER.
With onboard volume control, SG-2 is a perfect choice in a piezo pickup for guitar. It’s an acoustic bridge pickup that transfers the natural sound of your instrument without requiring modification.

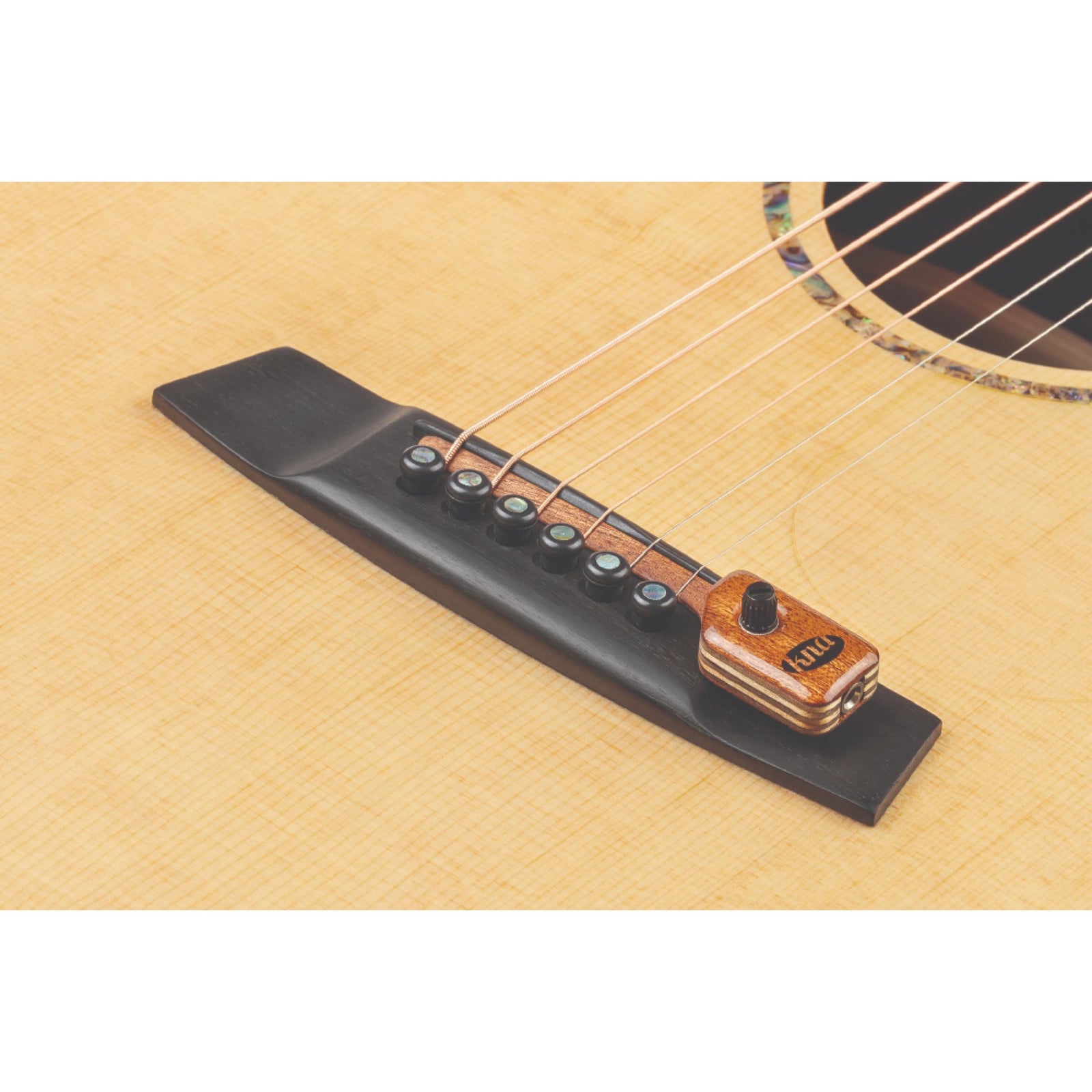

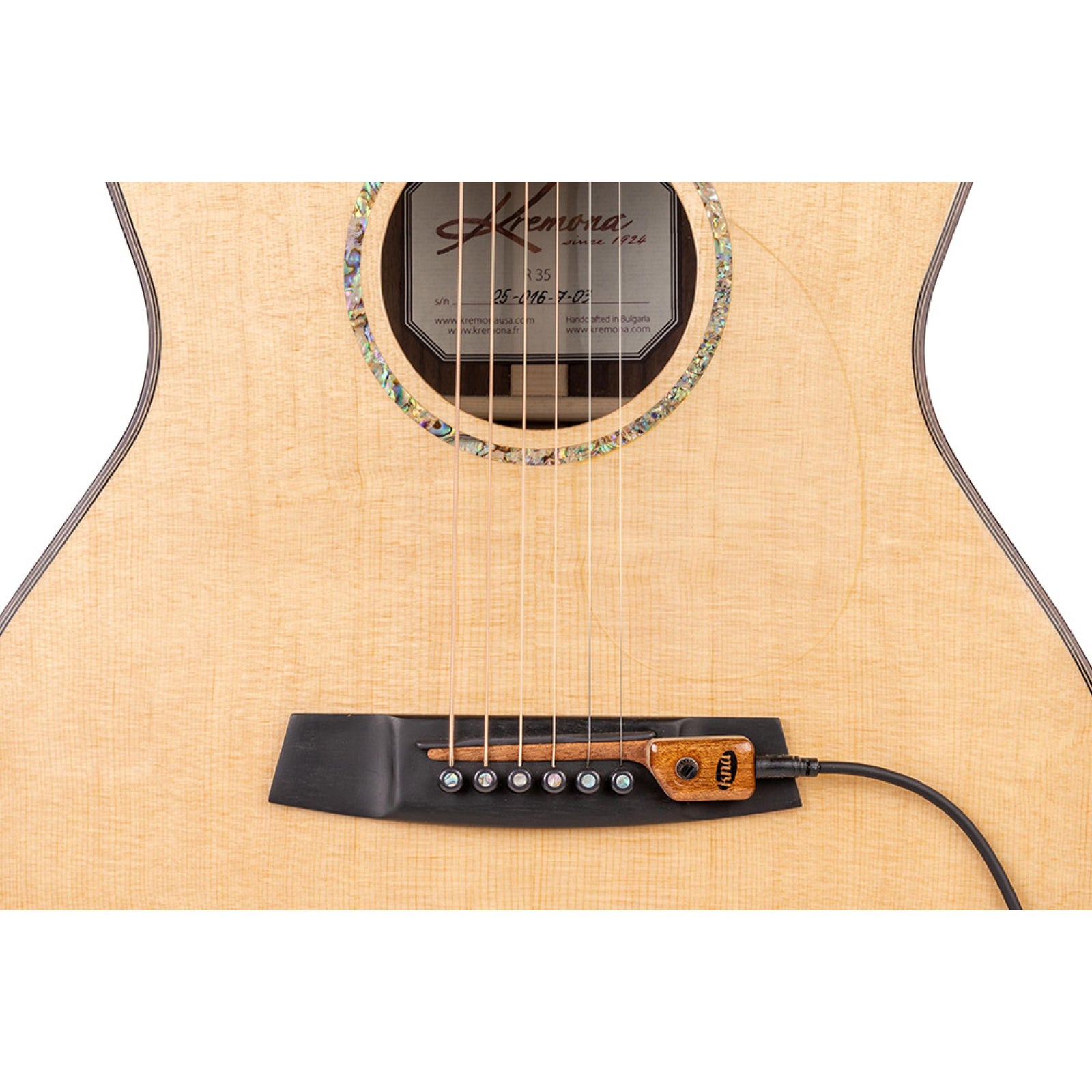

SG-2 installs safely and securely between the bridge saddle and pins, held in place by the tension of tuned strings.
Install with no modification
SG-2 installs safely and securely between the bridge saddle and pins, held in place by the tension of tuned strings.
Onboard volume control
Players can control their output signal while onstage or in the studio, right from the pickup-mounted volume knob.

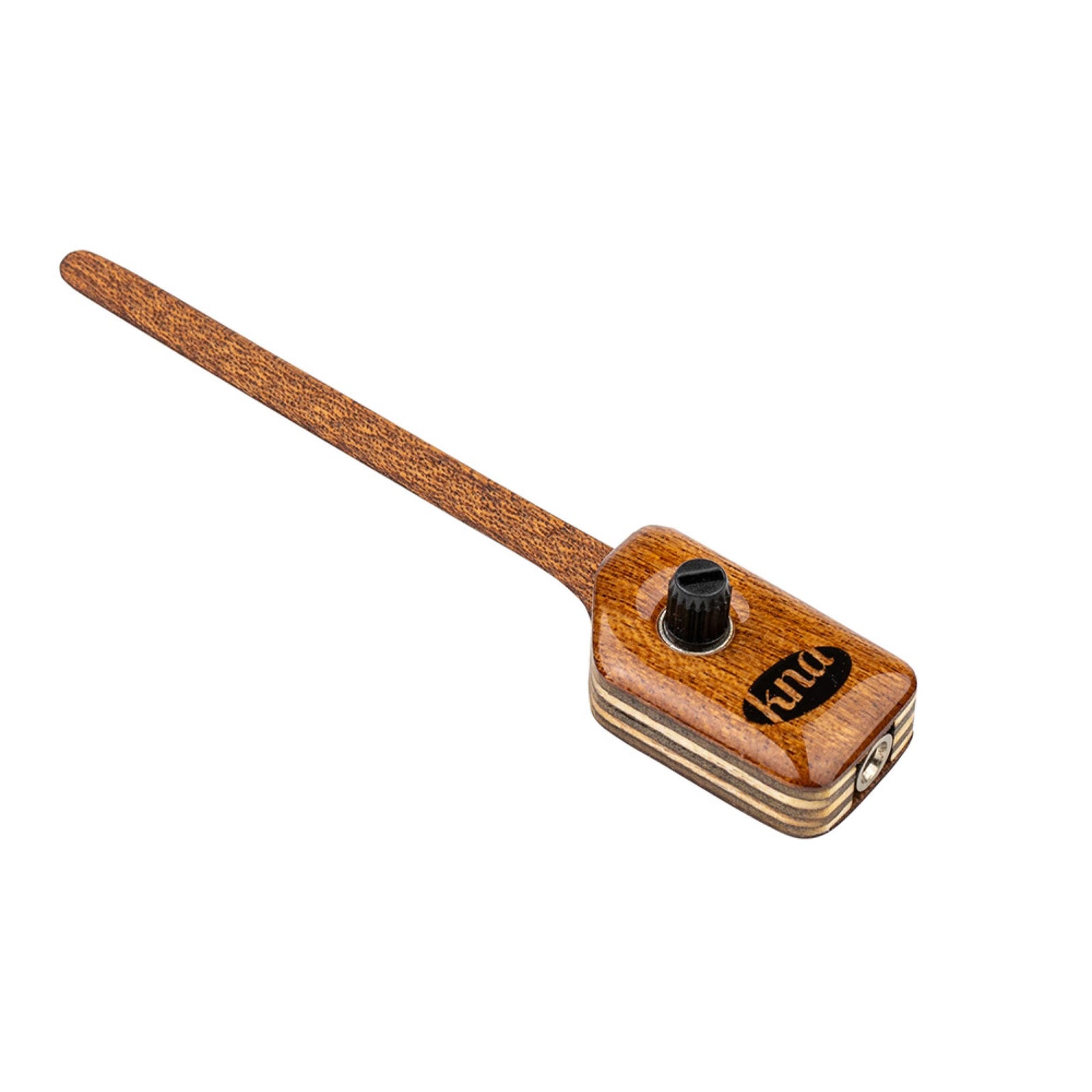

Wood case
The piezo element is encased in elegant and stylish mahogany. The lightweight assembly offers maximum tonal sensitivity.
Natural Sound
SG-2 has a passive design that reproduces the natural sound of the instrument with no need for a battery.

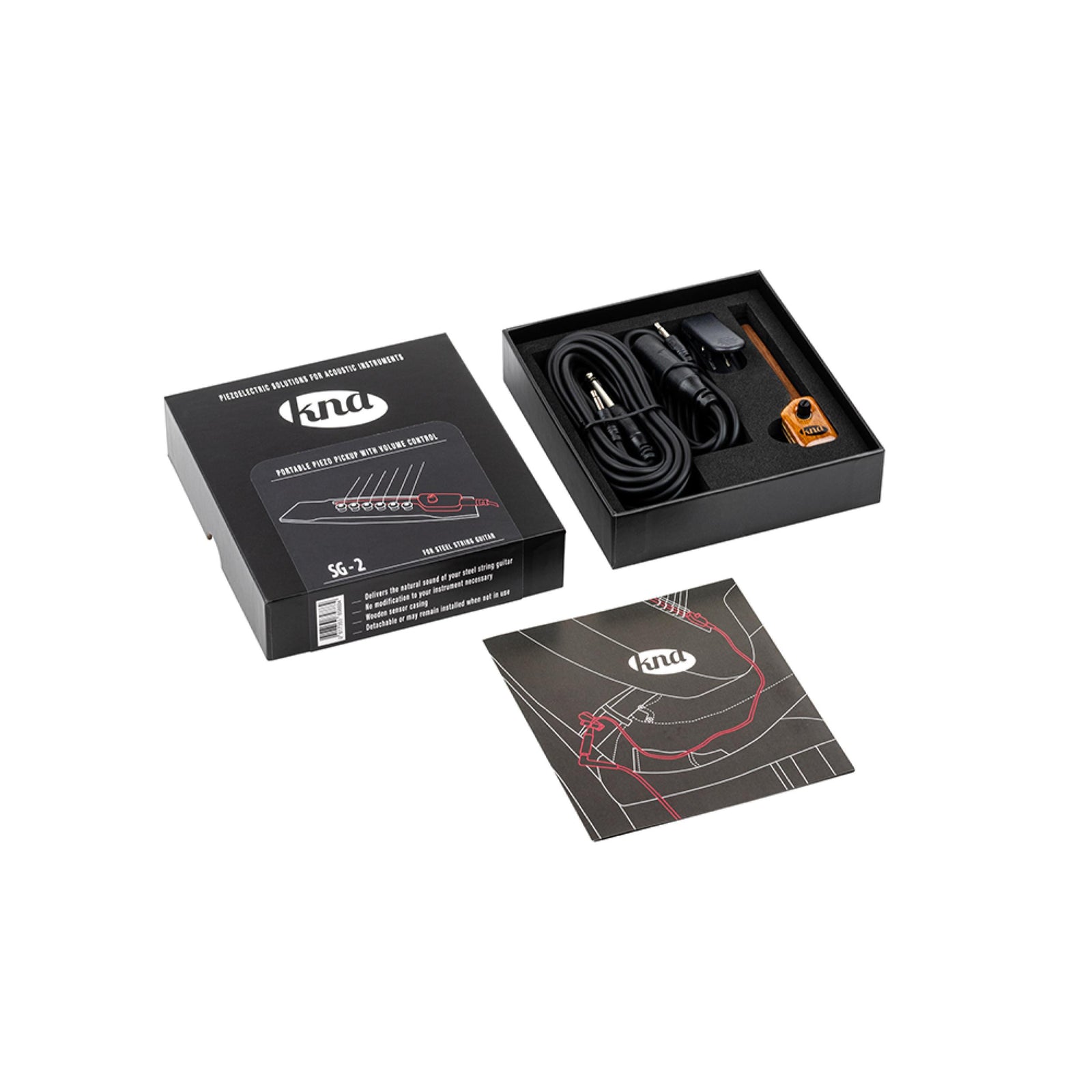

Complete set

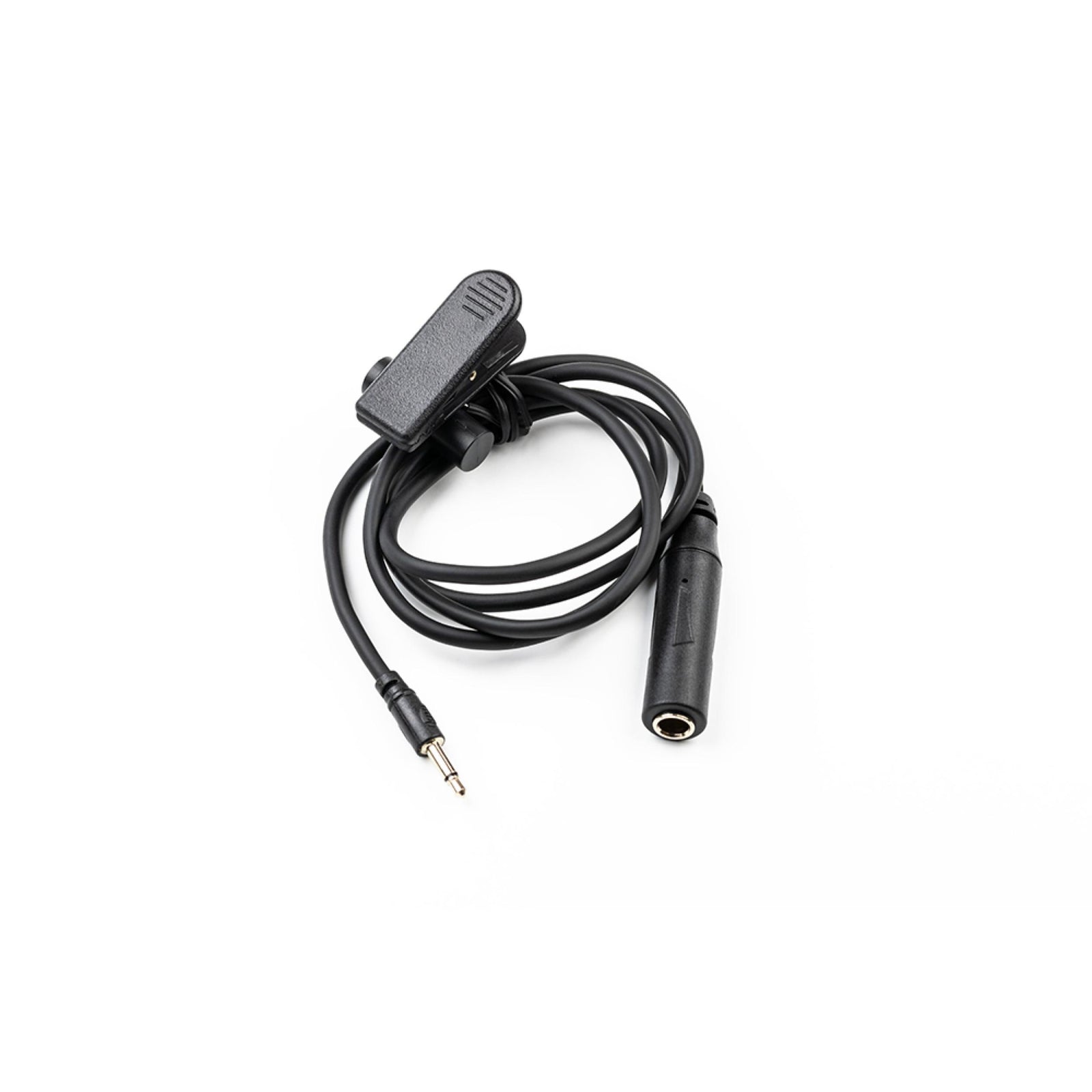

Two cables are included — a 9-ft. 1/8" to 1/4" and a 3-ft. 1/8" to female 1/4" jumper with safety clip to connect with your instrument cable.
Instructions
1️⃣Loosen the strings of your guitar. The pickup will be inserted between the bridge pins and the saddle. The bridge saddle should have a minimum of 2.5mm (0.098") height on the treble side to allow room for pickup placement and for it to function properly.

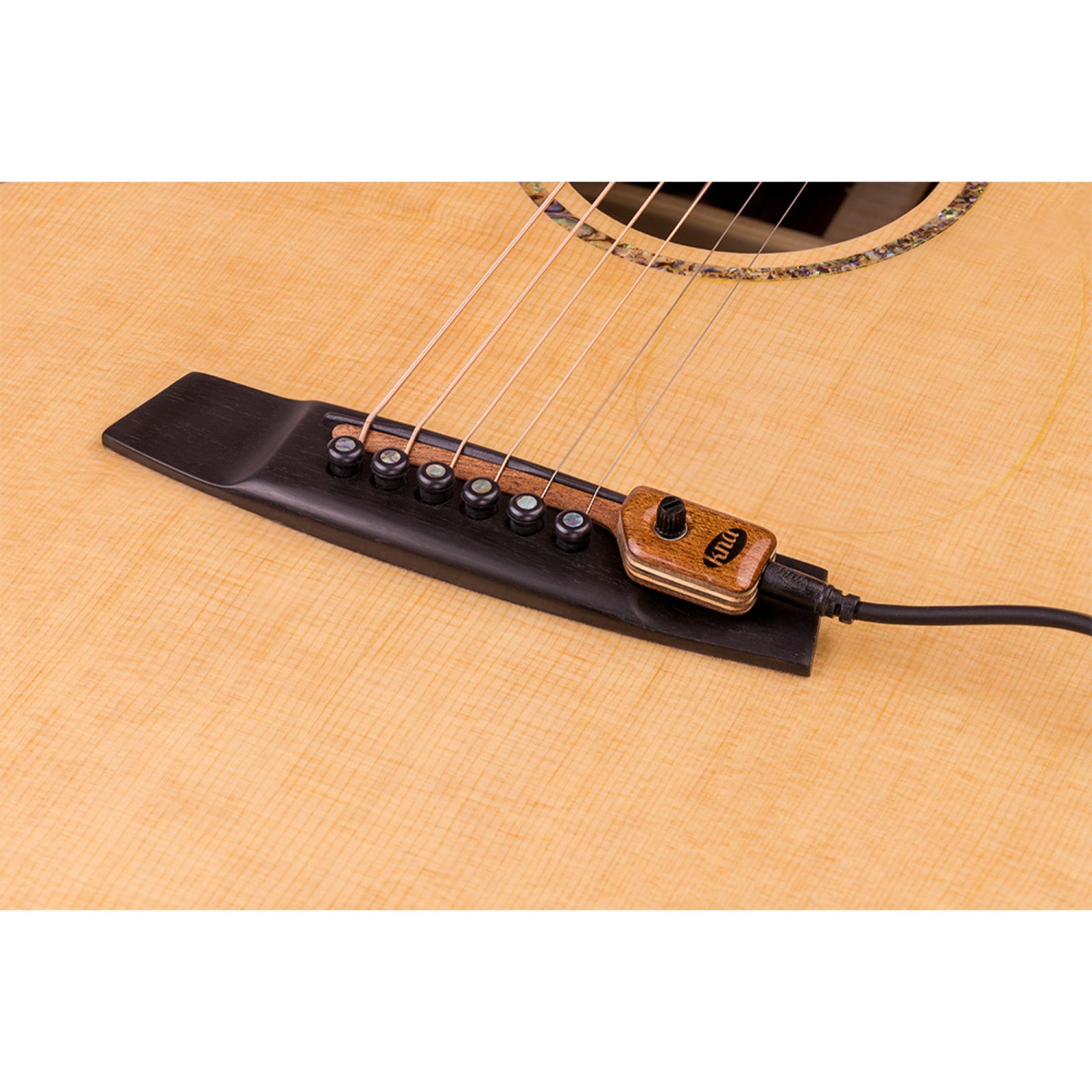

2️⃣Starting with the narrow end, slide the pickup between the bridge pins and the saddle. Move the pickup from the treble side up to the bass side until the end rests below the last string.
With the SG-2 in place, tune the instrument normally, making sure the bridge pins remain properly seated
3️⃣Press the top button to open the safety clip. Insert your instrument cable into the opening and release the button.
4️⃣Hold the pickup head securely when attaching and detaching the cable.
Attach the clip to a suitable part of your instrument strap, belt or belt loop. The jumper cable and safety clip will protect your pickup from accidental damage caused by the cable pulling on the head of the pickup.
Enjoy your new pickup!
Video Review
| Specifications |
| Weight |
5.85g. / 0.21oz |
| Wood |
Mahogany |
| Maximum Impedance |
500 Ω |
| Cables |
| Jumper cable with safety clip |
1meter / 3' |
| Amp cable |
3meter / 9' |
| Measurements |
| Specified part |
Letter |
Size in MM (from*) |
Size in MM (to*) |
Size in INCH (from*) |
Size in INCH (to*) |
| Transducer length |
a |
67,4 |
67,5 |
2,654 |
2,657 |
| Jack housing length |
b |
32,5 |
32,6 |
1,280 |
1,283 |
| Total pickup length |
c |
100,0 |
- |
3,937 |
- |
| Transducer width at 6th string |
d |
4,3 |
4,4 |
0,169 |
0,173 |
| Transducer width at 1st string |
e |
6,5 |
6,6 |
0,256 |
0,260 |
| Jack housing width |
f |
19,1 |
19,2 |
0,752 |
0,756 |
| Active signal transfer area length |
g |
60,0 |
- |
2,362 |
- |
| Transducer thickness |
h |
1,6 |
1,7 |
0,063 |
0,067 |
| Jack housing height without potentiometer |
i |
10,7 |
10,8 |
0,421 |
0,425 |
| Jack housing height with potentiometer |
j |
16,3 |
16,4 |
0,642 |
0,646 |
|
*KNA handmade pickups may vary slightly in size due to the nature of the building |
=======================================================
