1 Year Warranty
Free Installation + Drum stool + Drumsticks

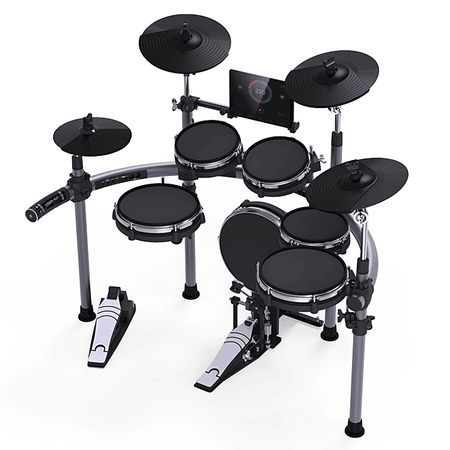

The YoDrum is an aesthetic e-drum set with a curved rack made from lightweight aluminum and invisible cabling, as it is enclosed in the rack. The minimalist sound module is also incorporated in the rack and features WIFI and Bluetooth. With these features and the associated Pro App you can select drum kits, backing tracks and in-depth settings easily via iPhone or iPad. All ports, as well as inputs and outputs are easily accessible in the rack. The YoDrum comes with a total of 10 pads, one snare and four tom pads are stereo with two zones, the 3 cymbals even have 3 zones and a choke function, so they can be stopped by hand, just like the hi-hat, which has a separate zone.
Features:
Sample your favorite sounds anywhere!
Sample the drum kits you love and make it yours
Create playable beatbox with your own voice
Mix & Match sounds to build unique kits
Transfer wirelessly
Implemented with WIFI 802.11n & Bluetooth 4.0 Modules
Establish connection with smart mobile devices
Use multi-channel wireless technology
Achieve performance level, low latency and real-time wireless communication.
11 Proprietary Core Microchips
Single 32-bit ARM9 processor
8 high performance effect DSPs and 2 precision synthesis DSPs
Define standards for computational performance and audio algorithm technology in music industry
Cloud
Cloud kits management
Online store brings new tones and other creative features to users
YoDrum Pro App
Perfect companion for professional drummers
Fine kit customizations allow to even set tightness of snare strainer
Samples recording from phone to YoDrum opens up your creative mindset
Specifications
|
Tiggers
|
|
Kick
|
12″,mesh
|
|
Snare
|
10″,mesh,head & rim multi-sensor
|
|
Tom 1-3
|
8″,mesh,head & rim multi-sensor(x3)
|
|
Tom4
|
10″,mesh,head & rim multi-sensor
|
|
Hi-Hat
|
10″,choke & bow multi-sensor
|
|
Crash
|
12″,choke,edge & bow multi-sensor(x2)
|
|
Ride
|
12″,choke,bell,edge & bow multi-sensor
|
|
Expansion
|
Splash cymbal,China cymbal
|
|
Smart Controller
|
|
Polyphony
|
256
|
|
Preset Kits
|
6 preset drum kits
|
|
User Sample Memory
|
approx. 63Gb (share with other user contents)
|
|
Preset Instruments
|
178 preset drum voices, 128 GM voices
|
|
DSP
|
Reverb, Chorus, Compressor, EQ
|
|
Tempo
|
30 ~ 280 BPM
|
|
Display
|
Dot-matrix OLED display
|
|
WIFI
|
2.4G WLAN 802.11b/g/n, with AP hotspot function
|
|
Bluetooth
|
Bluetooth 4.0, A2DP & BLE MIDI profile
|
|
Other
|
|
Connectors
|
USB to host (USB type C, USB MIDI & Audio Interface), USB to device (USB type A, MSD)
|
|
Line Out (6.5mm Stereo), Line In (3.5mm Stereo), Phones (3.5mm Stereo)
|
|
MIDI IN & OUT (DIN)
|
|
Power Supply
|
DC 9V, 800mA
|
|
Dimensions
|
1290 x 760 x 1060 mm (adjustable)
|
|
Gross Weight
|
31 KG
|
All specifications subject to changes without notice.
