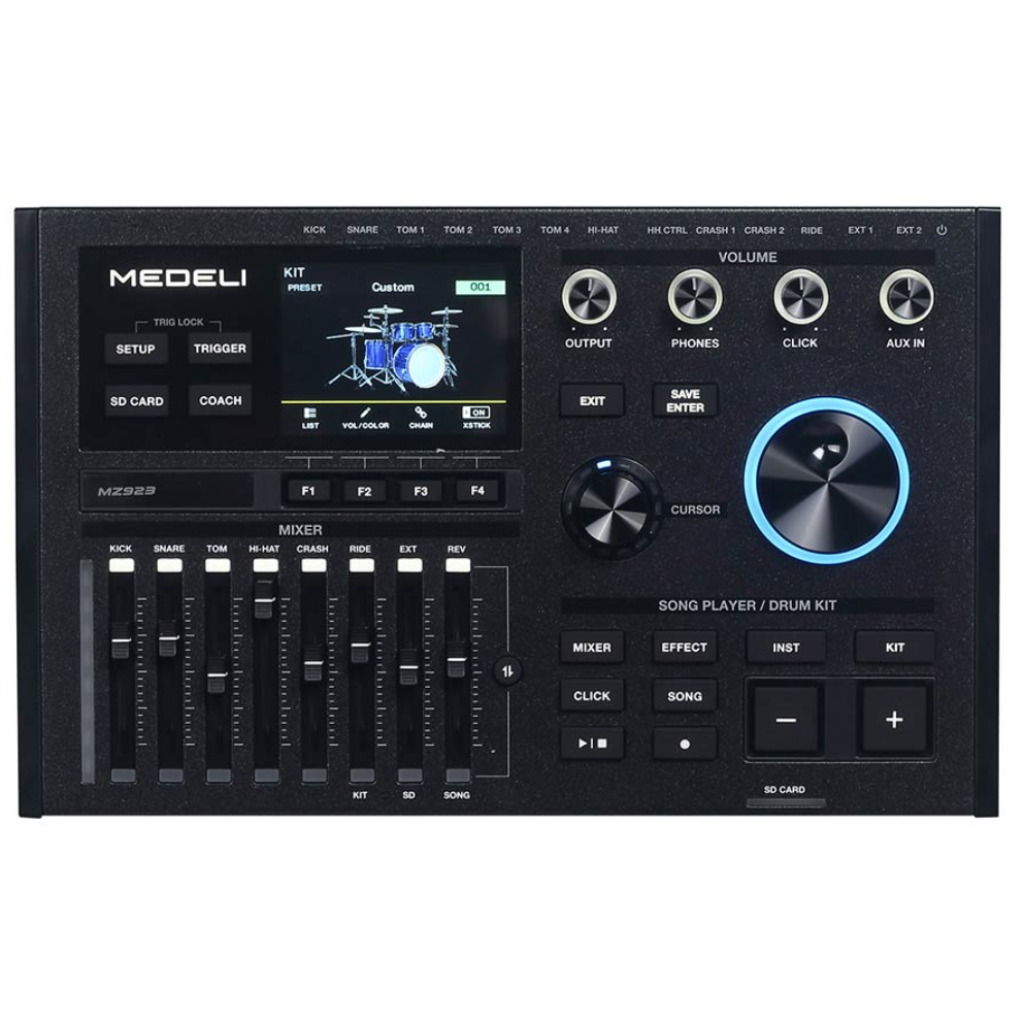

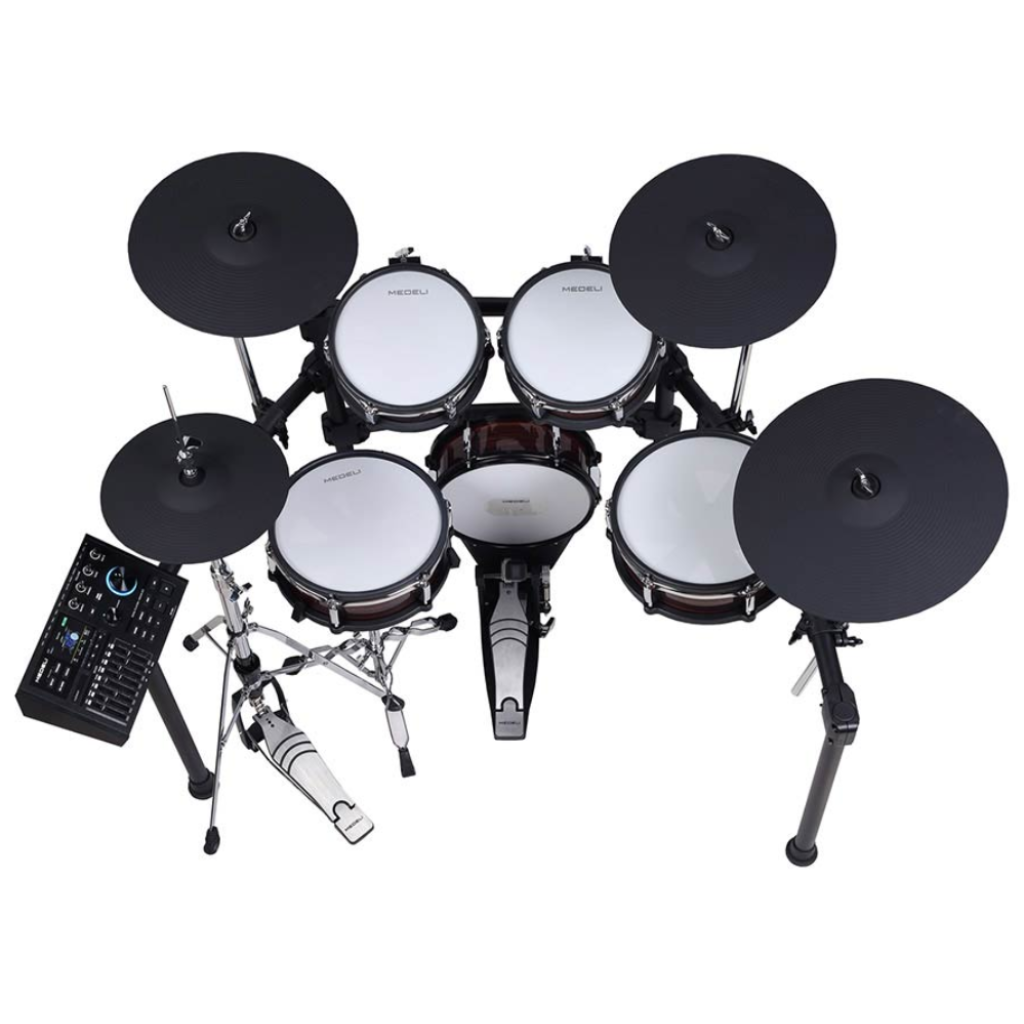

A large, color icon-based, LCD screen with dedicated knobs, buttons and volume sliders make navigation intuitive and easy. The MZ923 provides all the necessary features you need without all the ones you don’t so you can spend more time playing, not programming.
With a wide range of connectivity options—including USB MIDI—you’re fully equipped for any recording, practice, and performance applications that you’ll encounter
SPECIFICATIONS
| TRIGGER |

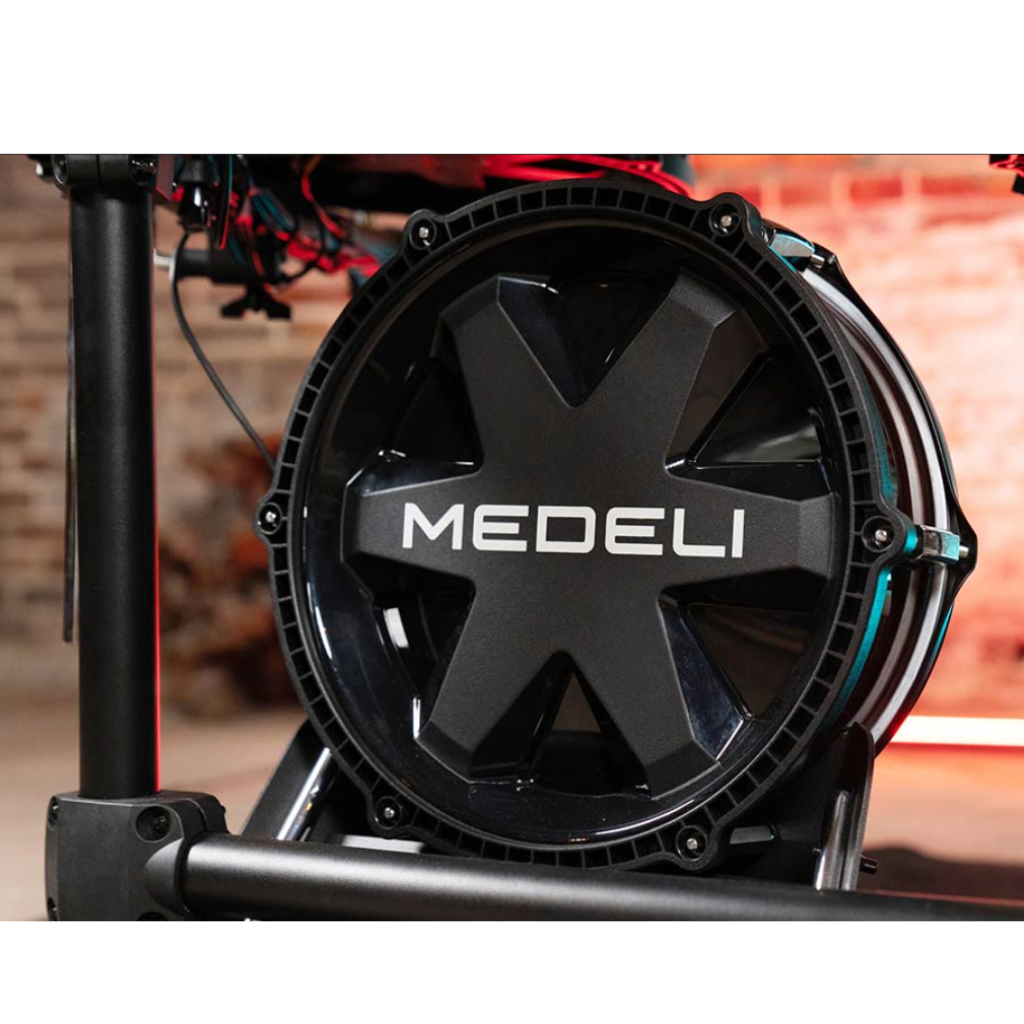

| KICK |
12" mesh head |

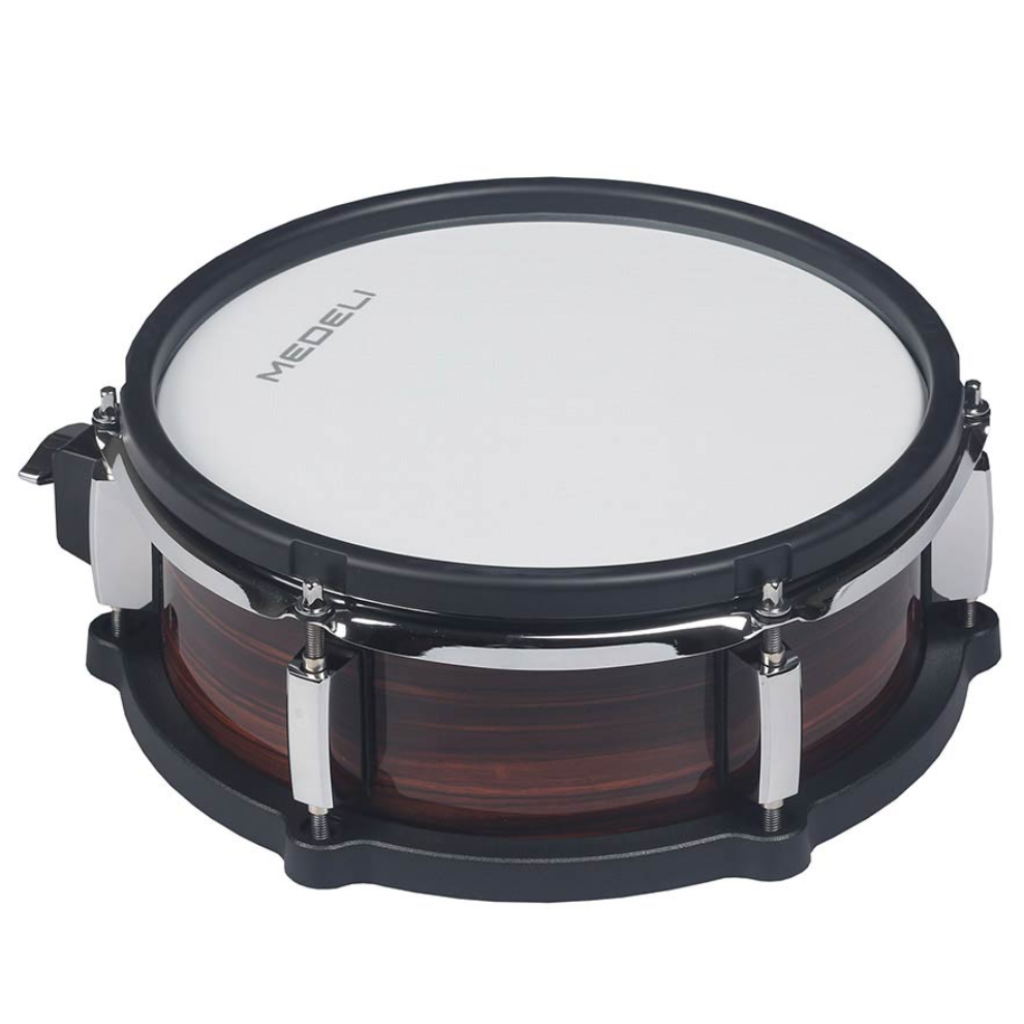

| SNARE |
12" mesh head (2-zone, position sensing) |
| TOM |
2 x 10'' mesh head (2-zone), 12" mesh head (2-zone) |
| HI-HAT |
12'' (2-zone) |
| HH PEDAL |
Real hi-hat |
| CRASH |
2 x 14'' (2-zone with choke) |
| RIDE |
16'' (3-zone with choke) |
| EXPANDABILITY |
TOM4 • EXT1 • EXT2 |
| DISPLAY |
3.5" 320 x 240 TFT |
| MAX POLYPHONY |
256 |
| DRUM KIT |
55 preset + 45 user |
| SOUND / VOICE |
917, 82 users max. (128MB) |
| SONG |
108 MIDI + 20 Audio |
| EFFECT |
Kit: reverb, EQ, compressor, IFX, Trigger: compressor, EQ, reverb |
| RECORD |
MIDI (2 user) • Audio (WAV, 97 songs max.) |
| AUDIO PLAYBACK |
WAV • MP3 |
| COACH |
Quiet count • Beat check • Change up |
| METRONOME |
Click voice • Volume • Time signature • Interval select |
| TEMPO |
30-280 |
| VOLUME CONTROL |
4 x knobs • 8 x sliders |
| EXTERNAL MEMORY |
SD card (64GB max.) |
| TRIGGER PARA |
Sensitivity • Threshold • H/R Adjust • XStick Point, Curve • Retrig cancel • Splash sensitivity • HH close point • Scan Time |

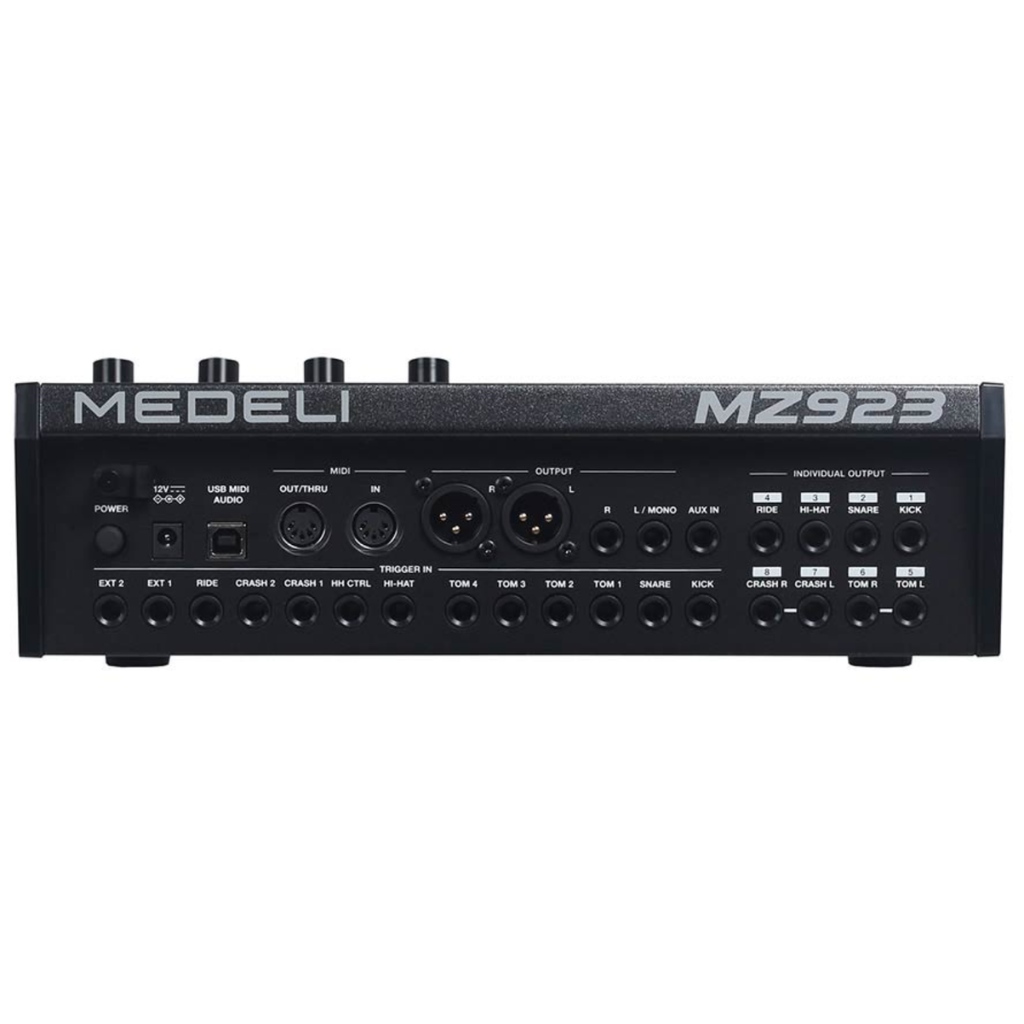

| CONNECTION |
|
| BLUETOOTH |
MIDI & Audio |
| USB |
1 x USB-B (MIDI & Audio) |
| MIDI |
MIDI in / out |
| HEADPHONE JACK |
1/8“ + 1/4 " jacks |
| AUX-IN JACK |
1/4" + 1/8" jack |
| OUTPUT JACK |
1/4" mono jack x 2 + XLR type x 2 + 8 x Direct Out |
| POWER |
DC12V |
| DIMENSION |
1500 x 910 x 1150 mm |
| WEIGHT |
49.5 kg |
